Pipeline Floats Built for Changing Routes and Demanding Water Conditions

A Floating Pipeline rarely stays under one fixed condition from installation to completion. Water levels change, routes move, connections are adjusted, and working loads vary. Well-matchedPipeline Floats help you keep the line supported, visible, and easier to manage while reducing avoidable stress during operation.

What Are Pipeline Floats and Why Do They Matter?

Pipeline floats are modular buoyancy components installed around a pipeline to support it on the water surface. Their purpose is not simply to keep the pipe afloat. They help distribute load, control pipeline elevation, reduce unsupported sections, and allow the line to respond more predictably to water movement. For port construction, marine engineering, reclamation development, water-management work, and public utility projects, pipeline stability can affect the entire operating schedule.

If the pipeline sits too low, moves unevenly, or develops unsupported sections, your team may need to stop work for repositioning or inspection. A correctly configured floating pipeline support system helps reduce these interruptions by maintaining more consistent buoyancy along the route.

Quick Answer: What Are the Main Advantages of Pipeline Floats?

Pipeline floats provide distributed buoyancy, modular installation, corrosion resistance, impact protection, easier handling, and flexible spacing. When matched to the pipe diameter, operating load, and water conditions, they help you maintain a more stable floating pipeline and reduce unnecessary stress around joints and connection areas.

Changing Pipeline Routes Require Flexible Support

Pipeline routes often change as a project progresses. You may need to extend the line, move it around a working zone, adjust a bend, or reposition a section to avoid vessel traffic. A fixed support arrangement can make these changes difficult. Modular Pipe Floats for floating pipelines allow your team to adjust the support layout without permanently changing the pipe. The float body is normally divided into matching sections that fit around the pipeline and are secured with mechanical fasteners.

This design makes it possible to remove a float, move it to another position, or add extra support where operating conditions become more demanding. For contractors managing temporary or frequently changing pipeline routes, this flexibility can reduce the amount of new equipment required each time the layout changes.

Distributed Buoyancy Protects Connection Zones

Pipeline joints and couplings are often more sensitive to uneven movement than straight pipe sections. When one part of the line is well supported, and the next section sits lower, the connection between them may experience repeated bending. Over time, this can increase wear on joints, flanges, flexible connections, and fastening components. A suitable pipeline float arrangement helps keep the sections on both sides of a connection at a more consistent level.

This does not mean every connection needs a float installed directly beside it. The correct arrangement depends on pipe weight, joint design, internal load, and local water conditions. However, connection zones should always be reviewed separately during float spacing planning. If your route includes bends, valves, adapters, or other heavier components, these areas may require a different support pattern from ordinary straight sections.

The Working Pipeline Weight Determines Real Buoyancy Demand

Pipe diameter is important, but it is not enough to determine the correct float. Two pipelines with the same outside diameter may have different wall thicknesses, pipe weights, joint types, and transported materials. Their real operating loads can therefore be very different. When selecting pipeline floats for material transport lines, you should consider the complete working condition. An empty pipeline may sit at the expected height during installation but move lower after operation begins. This happens when the selected buoyancy is based only on the pipe body and does not include the weight of the internal medium or attached equipment.

Your supplier should review the pipeline weight per unit length, internal material density, connection weight, required freeboard, and reserve buoyancy before recommending a configuration. The goal is not to provide the highest possible lift. The goal is to maintain a controlled and practical floating position.

Proper Float Spacing Creates a Smoother Pipeline Profile

Float spacing affects how the pipeline distributes its weight. When floats are positioned too far apart, the pipe may sag between support points. These low sections can create uneven movement and additional load around nearby connections. When floats are installed unnecessarily close together, you increase product, transport, and installation costs without always improving system performance. The most effective pipeline float spacing design creates a smooth support pattern across the route.

Straight sections in calmer water may use regular spacing. Bends, transition zones, heavier connections, and exposed areas may need closer support. This is why your entire pipeline should not always be treated as one identical section. A route-based layout allows buoyancy to be placed where it provides the most practical benefit.

A Secure Fit Helps the Float Remain in Position

A pipeline float must fit the pipe correctly. If the internal profile is too loose, the float may rotate or move along the pipeline during operation. If the fit is too tight, the float sections may be difficult to assemble and could place unnecessary pressure on the pipe surface. A reliable split pipeline float should close around the pipeline without excessive forcing. The mating surfaces should align, and the fastening points should accept the specified hardware correctly.

Dimensional consistency becomes especially important on large orders. If float sections vary from one batch to another, your installation team may need to sort and match individual pieces at the site. Consistent manufacturing allows matching sections to remain interchangeable within the same specification, making installation and replacement more efficient.

Lightweight Construction Supports Faster Site Work

Pipeline floats are often large in volume, but their body weight can still be kept manageable. A lighter float is easier to move during unloading, storage, assembly, and route adjustment. This is useful when your project has limited lifting equipment or when many units must be installed along a long pipeline. Your team may also need to move floats between pipeline sections as operating conditions change. A manageable body weight makes this work more practical.

Lightweight construction should not be confused with weak construction. A dependable float still needs a durable outer body, stable internal buoyancy, secure fastening areas, and enough resistance to routine handling impact. The advantage comes from combining field-friendly handling with long-term support performance.

Impact Resistance Reduces Damage During Handling

Pipeline floats may be exposed to impact before they are even installed. They can be struck during loading, moved across a busy yard, placed on uneven ground, or contacted by tools and equipment during assembly. Once on the water, they may also encounter workboats, floating objects, and repeated movement around the pipe. An impact-resistant outer shell helps protect the internal buoyancy structure and maintain the shape of the float.

This is particularly important around the fastening areas and mating surfaces. Damage in these locations can make assembly difficult even when the rest of the body remains usable. Correct handling is still necessary. Floats should not be dragged across sharp surfaces or lifted from unsuitable points. However, durable construction gives your team greater protection against the minor contact that commonly occurs during real project work.

Corrosion Resistance Simplifies Long-Term Use

Pipeline floats operate in wet and exposed environments. A corrosion-resistant body does not require repeated rust removal, repainting, or coating repair. This can reduce routine surface work over the life of the project. For a long floating line containing many float units, lower maintenance per unit can produce a meaningful reduction in labor.

The fastening hardware should still be inspected according to site conditions. Bolts, nuts, and washers must remain secure and suitable for the working environment. By separating body maintenance from hardware inspection, your team can focus attention on the parts most likely to affect installation security.

High Visibility Improves Route Awareness

A floating pipeline may pass through an active port, construction area, reservoir, channel, or coastal working zone. High-visibility marine pipeline floats make the route easier to identify from nearby workboats and inspection points. This supports daily observation and helps operators notice unusual movement, disconnected sections, or changes in pipeline alignment. Visibility is especially useful when the pipeline route changes during the project.

Color can also help you separate different pipe sections or equipment groups. Project markings, molded references, or identification labels may be added when your maintenance team needs to track individual batches. These features should be confirmed before manufacturing so they remain consistent across the order.

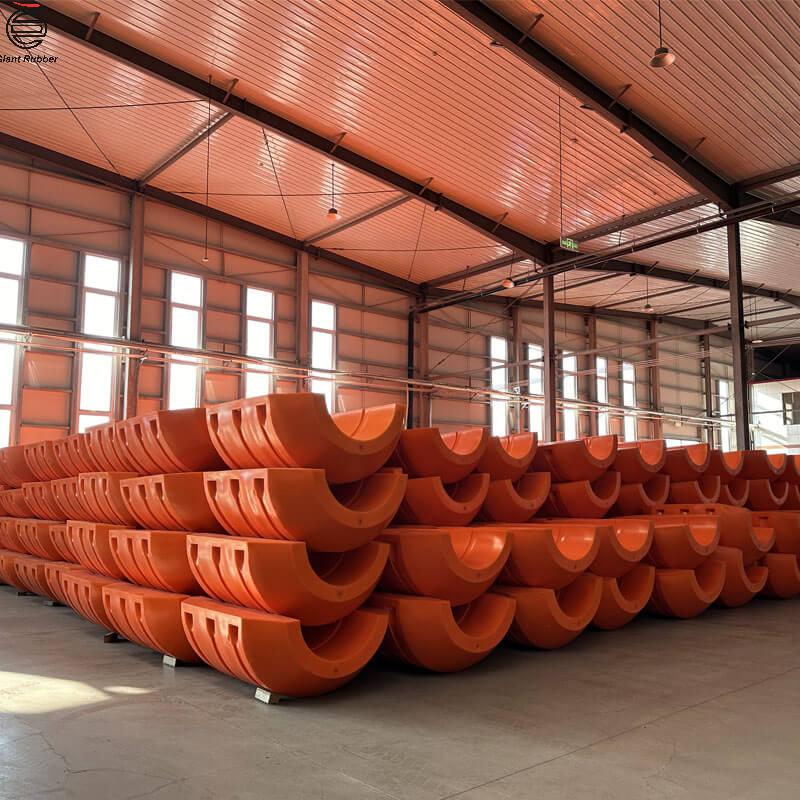

Recent Pipeline Float Shipment Organized by Installation Zone

A recent shipment from Juhua Rubber & Plastics was prepared for a contractor operating a long floating pipeline across several working zones. The customer did not need one identical support arrangement across the complete route. Straight sections, connection areas, and exposed sections required different float distribution. Before production, the project information was reviewed to confirm the pipeline outside diameter, approximate operating weight, connection layout, route conditions, and installation method. The float specification was then matched to the pipe, while the shipment was organized to help the receiving team separate products according to the planned installation zones.

Instead of treating the order as one mixed group, the factory identified the float sections and fastening components in a way that supported the customer's site sequence. This reduced the amount of sorting required after delivery and made it easier for the installation team to prepare the correct components for each part of the route.

Production Checks Focused on Interchangeable Assembly

For modular pipeline floats, appearance alone does not determine shipment quality. The float sections need to align correctly, fit the intended pipe, and accept the fastening hardware without field modification. During production, the team checked the internal pipe-contact dimensions, mating surfaces, fastening positions, and external body condition. Matching sections were assembled during inspection to confirm that the connection areas aligned properly. This helped identify dimensional variation before the products entered the packing stage.

The outer bodies were also reviewed for deformation or visible damage that might affect handling or long-term performance. By checking assembly before dispatch, the factory helped reduce the risk of the site team receiving float sections that could not be installed together efficiently.

Hardware Was Matched to the Float Configuration

Small fastening components can determine whether installation begins on schedule. If bolts are missing, incorrectly sized, or mixed between float specifications, your site team may need to source replacements locally. This can delay assembly, particularly when the project is located away from major industrial supply centers. For the recent shipment, fastening hardware was counted and grouped according to the related float specification.

The accessories were packed separately from the large float bodies to prevent loss or impact damage. Package references linked the hardware to the correct float group. This simple preparation made the receiving inspection more practical and helped the installation crew identify the required components before moving equipment to the water.

Packing Supported Efficient Unloading and Storage

Pipeline floats take up considerable transport space because of their shape and buoyancy volume. Packing must therefore protect the products without making unloading unnecessarily difficult. The float sections in the recent shipment were arranged to limit movement during transport. Mating surfaces and fastening zones were positioned to reduce pressure and contact damage. The packages were clearly identified so the receiving team could separate the floats by specification and installation area.

The main shipment controls included:

• Float sections grouped according to pipe size and planned route area
• Fastening hardware packed and identified separately
• Mating surfaces protected from direct pressure
• Package references matched with the packing list
• Product markings positioned for easier receiving inspection

This was the only part of the shipment process presented as a list because these details are usually checked directly by warehouse and logistics teams.

Why Factory Organization Affects Field Efficiency

The condition of the product is important, but the organization of the shipment also affects project performance. When float sections, hardware, and documents arrive as one unmarked group, your team must identify and sort everything before installation. This requires additional storage space, labor, and supervision. An organized pipeline floats delivery allows the receiving team to check the order, separate installation groups, and prepare each section more efficiently.

This is particularly valuable when the project includes several pipe sizes, different float configurations, or phased installation schedules. Factory organization cannot replace a good project plan, but it can help your site team follow that plan with fewer avoidable delays.

Custom Pipeline Floats for Non-Standard Requirements

Some pipeline routes require more than a standard float model. You may have an unusual pipe outside diameter, limited clearance around a connection, additional cables attached to the pipeline, or project-specific visibility requirements. A custom pipeline float solution can be developed around these conditions. The internal pipe-contact profile, external dimensions, fastening arrangement, buoyancy volume, color, and markings may be adjusted according to the application.

Customization should always begin with accurate project information. A float that matches the pipe diameter but interferes with a joint or attached cable is not a practical solution. Sharing pipeline drawings and connection details before production allows these issues to be reviewed earlier.

What You Should Send for Pipeline Float Selection

A useful technical review requires more than a requested quantity. You should provide the pipe outside diameter, wall thickness, pipe weight, transported medium, pipeline length, working environment, route layout, required freeboard, and expected operating duration. You should also identify any bends, joints, valves, or heavier components along the route. If the pipeline will be moved regularly, explain how it will be towed or repositioned. This can affect float spacing and fastening recommendations.

Photographs, drawings, and route sketches help the manufacturer understand conditions that may not be clear from a specification table. Complete information leads to a more relevant recommendation and reduces the likelihood of changing the float arrangement after delivery.

Applications Across Infrastructure Projects

Pipeline floats can support many marine and inland water operations. Port operators and constructors may use them to support temporary or long-term floating pipelines during infrastructure development and maintenance. Marine engineering companies can use modular float systems where pipeline routes need to be installed, extended, or repositioned in stages. Reclamation developers may require floating material-transfer lines that connect working areas across changing water conditions. Water resources and environmental agencies can use supported pipelines for water transfer, emergency pumping, sediment control, reservoir management, and temporary bypass work.

International engineering contractors and public utilities may also use pipeline floats around coastal construction zones, industrial water facilities, inland waterways, and remote infrastructure projects. The correct design depends on the actual pipe, load, route, and operating environment.

Lifecycle Value Includes Reuse and Adjustment

The initial purchase price is only part of the total cost of a pipeline float system. Transport, installation labor, maintenance, replacement hardware, storage, route adjustment, and project downtime all influence long-term value. A modular float can often be removed and reused when the pipeline is relocated or the project is completed. Before reuse, the body, fastening areas, internal buoyancy, and hardware should be inspected. Units showing major deformation or structural damage should not be returned to service without evaluation.

For contractors managing several projects, reusable floating pipe supports can reduce repeated procurement and make equipment planning more flexible. The product becomes part of your working inventory rather than a single-use purchase.

How Juhua Supports Pipeline Float Projects

At Juhua Rubber & Plastics, pipeline float orders are reviewed around the complete operating system. The team considers pipe dimensions, working weight, route conditions, installation requirements, fastening configuration, and shipment organization before production. This approach helps you receive floats that are not only manufactured to size but also prepared for handling, assembly, and field deployment.

For project orders, drawings, product identification, hardware control, and packing references can be coordinated according to the installation plan. The objective is to reduce uncertainty between factory production and site operation.

Frequently Asked Questions

What are pipeline floats?
Pipeline floats (also known as Dredge Floats or buoyancy modules) are devices attached to discharge pipes to keep them afloat on water.

How do I calculate how many floats I need for my pipeline?

You need to ensure total buoyancy exceeds total weight. Calculate the combined weight of the steel/pipe itself + the weight of the material inside (e.g., slurry/water) + accessories. The floats should provide at least 20-30% more buoyancy than this total weight to keep the pipeline floating properly (usually with 1/4 of the pipe diameter above water).

How long is the warranty period ?

The warranty period shall commence on the date the Buyer hands over the goods to the Investor and shall terminate upon the earlier of the following two dates: eighteen (18) months from the date of handover by the Buyer, or twelve (12) months from the date of installation.

Are these floats suitable for seawater use?
Yes, absolutely. Polyethylene (PE) is highly resistant to saltwater corrosion, UV radiation, and chemical erosion. They are actually preferred over steel floats in marine environments because they never rust.

Conclusion

Pipeline floats are essential to the stability and manageability of a floating pipeline. Correct buoyancy distribution helps maintain pipeline elevation, protect connection zones, and reduce unsupported sections. Modular construction allows the route to be adjusted, while lightweight and corrosion-resistant bodies simplify handling and maintenance.

The recent shipment also shows that effective delivery depends on production consistency, matched hardware, clear identification, and installation-focused packing. When you evaluate the pipe, working load, route, float spacing, and site requirements as one system, you can select pipeline floats that provide more reliable support throughout the project.
